304 stainless steel C2F type detachable double flange loose sleeve force transmission expansion joint
Product structure features
The main components of the double flange force transfer joint include:
1. Body: The main part of the joint.
2. Sealing ring: Play a sealing role.
3. Gland: Used to fix the sealing ring.
4. Stretch and shorten the pipe: Allow the pipe to expand and contract within a certain range.
5. Force transmission screw: Transmit the pressure thrust of the connected parts and compensate for the pipeline error.
Product Features
1. Compensation ability: It can compensate for the installation error of the pipeline and improve the installation accuracy of the pipeline system.
2. Various materials: According to different uses, Q235 carbon steel, 304 stainless steel, ductile iron and other materials can be selected.
3. Easy installation and maintenance: It can be adjusted according to the size of the site, which is convenient for installation and maintenance.
Product parameters

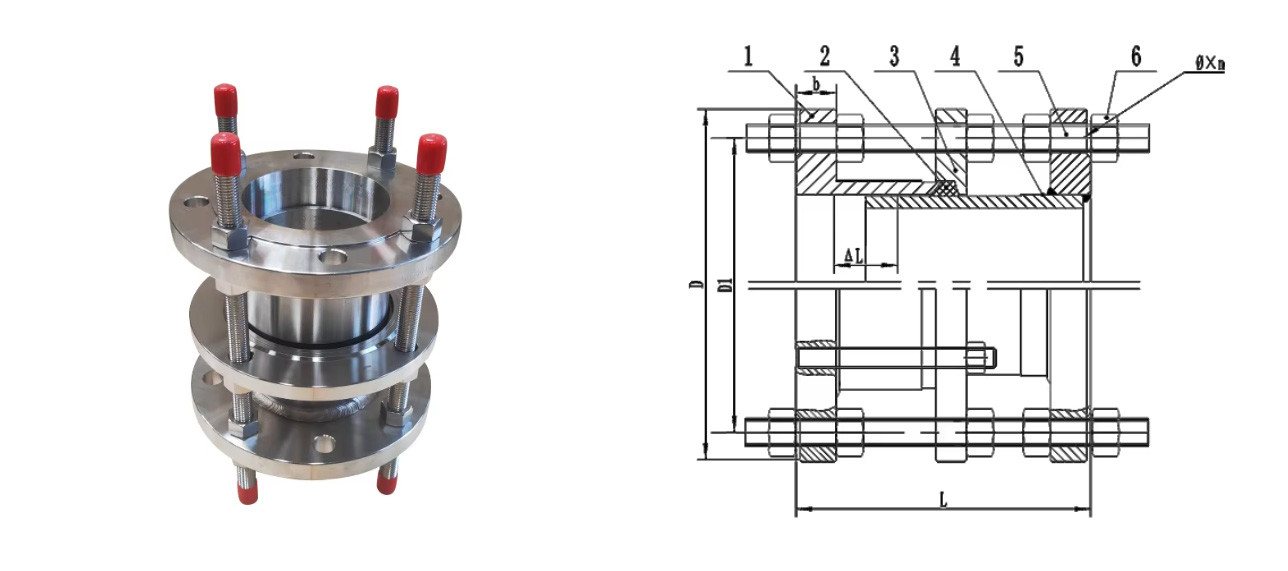

| NO | NAME | QUANTITY | MATERIAL |
| 1 | Body | 1 | Stainless steel SS304/316 |
| 2 | Rubber sealing ring | 1 | EPDM,NBR,etc. |
| 3 | Gland | 1 | Stainless steel SS304/316 |
| 4 | Limit stub | 1 | Stainless steel SS304/316 |
| 5 | Bolt | n | Q235B,20# |
| 6 | Nut | Tn | Q235B,20# |
| DN | Tube outer diameter | Dimensions | Flange connection size |
| 0.6Mpa | 1.0Mpa |
| L | ΔL | D | D1 | n-Th | b | D | D1 | n-Th | b |
| 65 | 76 | 200 | 40 | 160 | 130 | 4-M12 | 16 | 185 | 145 | 4-M16 | 20 |
| 180 | 89 | 190 | 150 | 4-M16 | 18 | 200 | 160 | 8-M16 | 22 |
| 100 | 114 | 210 | 170 | 220 | 180 | 24 |
| 125 | 140 | 240 | 200 | 8-M16 | 20 | 250 | 210 | 26 |
| 150 | 168 | 265 | 225 | 285 | 240 | 8-M20 |
| 200 | 219 | 320 | 280 | 22 | 340 | 295 | 28 |
| 250 | 273 | 375 | 335 | 12-M16 | 24 | 395 | 350 | 12-M20 |
| 300 | 325 | 220 | 50 | 440 | 395 | 12-M20 | 24 | 445 | 400 | 12-M20 | 28 |
| 350 | 377 | 490 | 445 | 26 | 505 | 460 | 16-M20 | 30 |
| 400 | 426 | 540 | 495 | 16-M20 | 28 | 565 | 515 | 16-M24 | 32 |
| 450 | 480 | 595 | 550 | 28 | 615 | 565 | 20-M24 | 32 |
| 530 | 530 | 645 | 600 | 20-M20 | 30 | 670 | 620 | 34 |
| 600 | 630 | 240 | 755 | 705 | 20-M24 | 30 | 780 | 725 | 20-M27 | 36 |
| 700 | 720 | 860 | 810 | 24-M24 | 32 | 895 | 840 | 24-M27 | 40 |
Tips:The above data is only part of the data, if you need a special size, please contact us.
Product application field

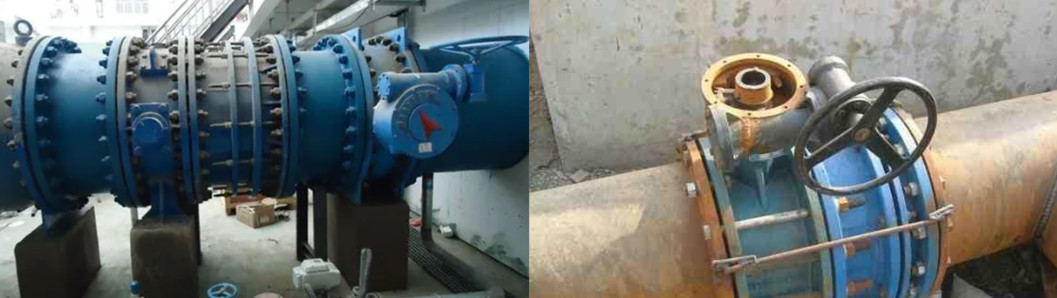

Double flange power transmission joints are widely used in oil and natural gas and other fluid transmission pipelines, as well as pipeline connections in thermal power generation, nuclear power, hydropower and other fields. In addition, this joint is also often used in the pipeline connection of urban water supply pipe networks, sewage treatment plants, water plants and other places. It can not only ensure the safe operation of the pipeline system, but also extend the service life of the pipeline and reduce maintenance costs.
Hot selling products
1.Duckbill valves

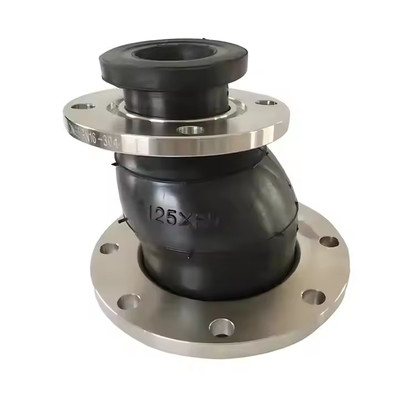

2.Eccentric reducer rubber joints

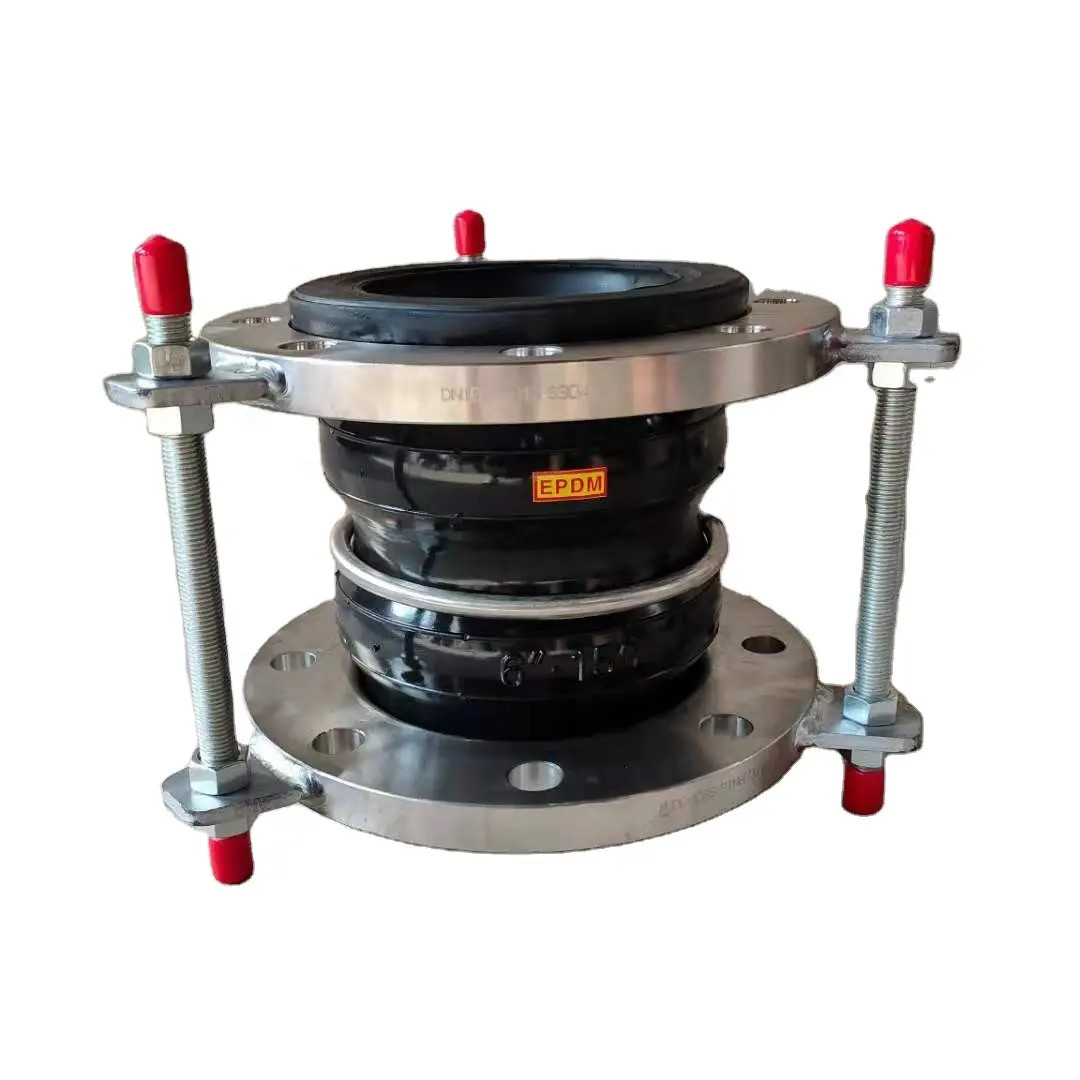

3.Double ball rubber joints

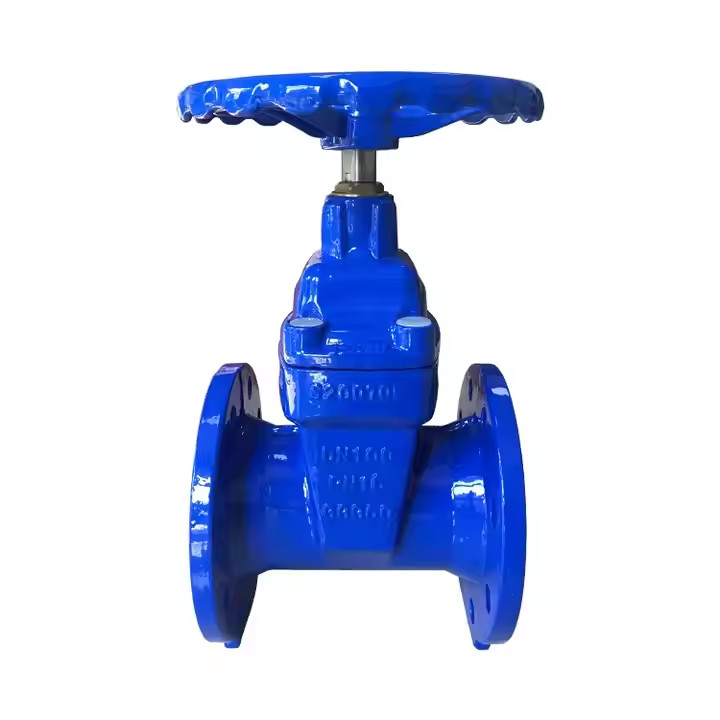

4.Gate valve

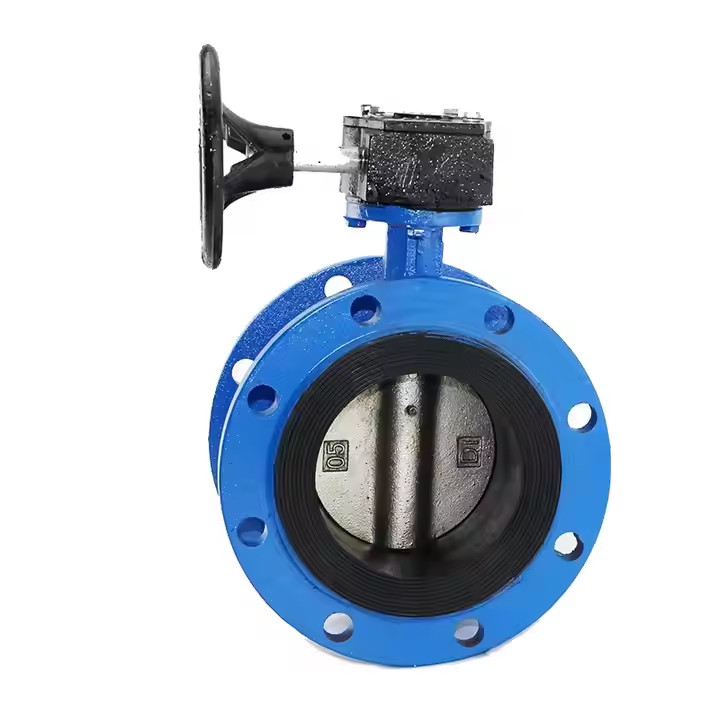

5.Butterfly valves

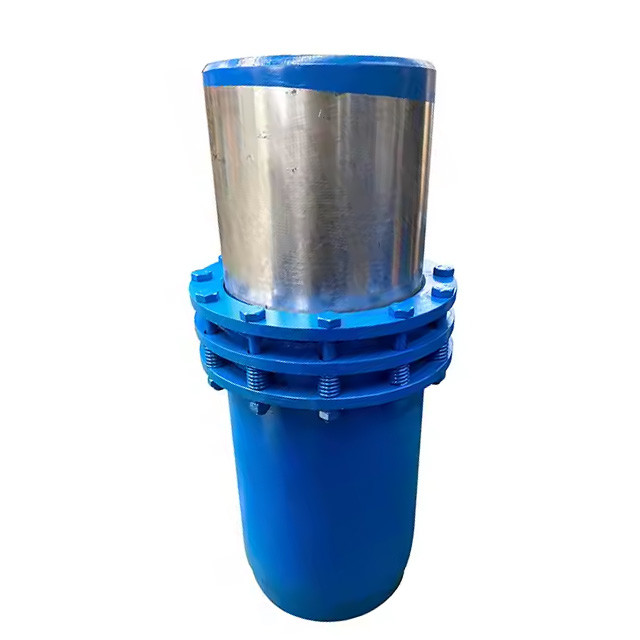

6.Sleeve compensator

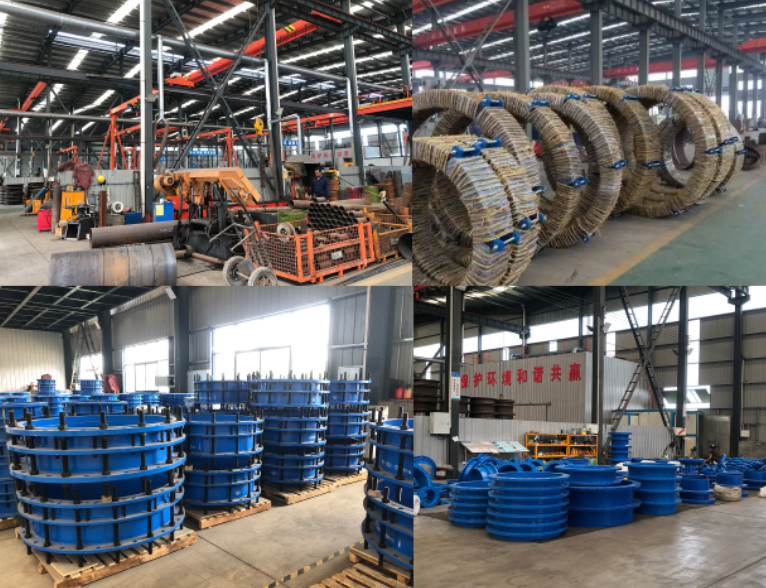

Factory display
