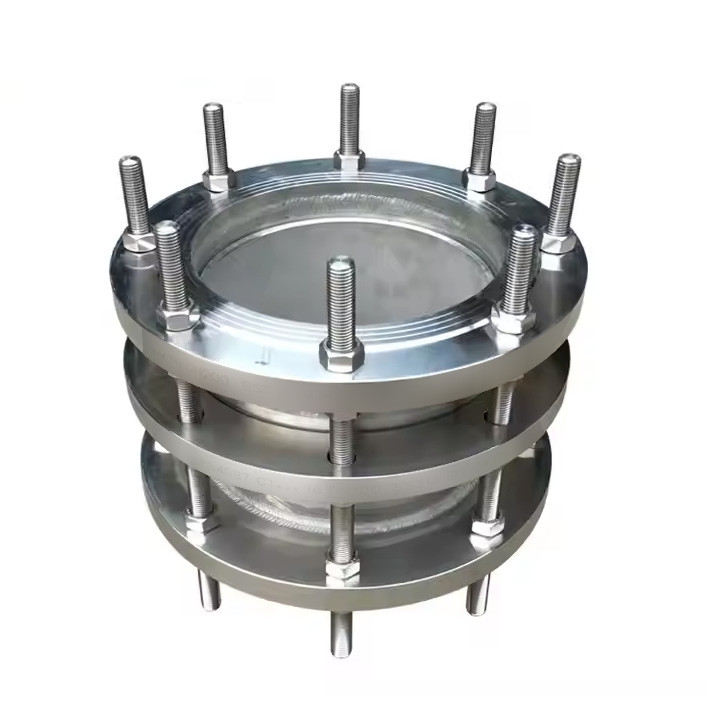

Pipe fittings double flange flexible coupling stainless steel dismantling joint
Product Features
1. High strength and corrosion resistance: It is made of stainless steel, which has high mechanical strength and corrosion resistance, and can adapt to the working needs of various complex environments.
2. Detachability: The detachable design is convenient for installation, disassembly and maintenance, which improves the work efficiency and saves time and cost.
3. Excellent sealing performance: Good sealing effect is achieved through sealing gasket to prevent fluid leakage in the pipeline.
4. Pressure resistance and flexibility: It can buffer the pressure change in the pipeline system, avoid the pipeline from being broken or damaged due to excessive force, and at the same time can expand and contract axially within a certain range to overcome various angular displacements and pipeline expansion.

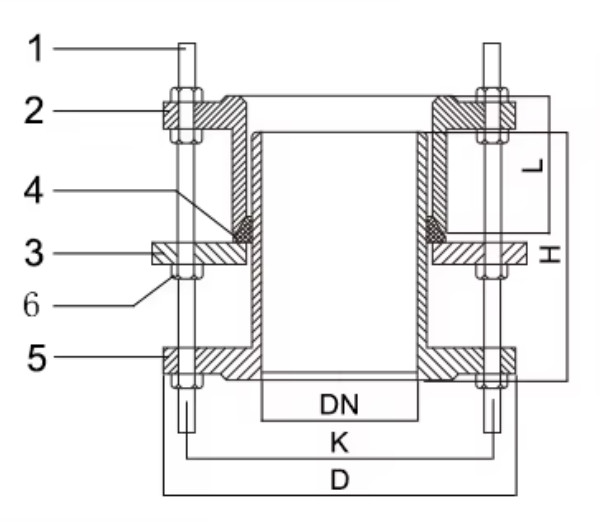

Product parameters
| NO | NAME | MATERIAL | QUANTITY |
| 1 | Bolt | GD4.8 | n |
| 2 | Short flange | SS304/SS316 | 1 |
| 3 | Pressure plate | SS304/SS316 | 1 |
| 4 | Gasket | EPDM | 1 |
| 5 | Long flange | SS304/SS316 | 1 |
| 6 | Nut | GD 4.8 | n |
| DN | PN10 | PN16 |
| D | K | Bolt holes | L | H | D | K | Bolt holes | L | H |
| Bolt | N-φd2 | Bolt | N-φd2 |
| 40 | 150 | 110 | M16 | 4-19 | 180 | 330 | 150 | 110 | M16 | 4-19 | 180 | 330 |
| 50 | 165 | 125 | M16 | 4-19 | 180 | 330 | 165 | 125 | M16 | 4-19 | 180 | 330 |
| 65 | 185 | 145 | M16 | 4-19 | 180 | 330 | 185 | 145 | M16 | 4-19 | 180 | 330 |
| 80 | 200 | 160 | M16 | 8-19 | 200 | 350 | 200 | 160 | M16 | 8-19 | 200 | 350 |
| 100 | 220 | 180 | M16 | 8-19 | 200 | 350 | 220 | 180 | M16 | 8-19 | 200 | 350 |
| 125 | 250 | 210 | M16 | 8-19 | 200 | 350 | 250 | 210 | M16 | 8-19 | 200 | 350 |
| 150 | 285 | 240 | M20 | 8-23 | 200 | 350 | 285 | 240 | M20 | 8-23 | 200 | 350 |
| 200 | 340 | 295 | M20 | 8-23 | 220 | 380 | 340 | 295 | M20 | 12-23 | 220 | 380 |
| 250 | 400 | 350 | M20 | 12-23 | 220 | 380 | 400 | 355 | M24 | 12-28 | 230 | 400 |
| 300 | 455 | 400 | M20 | 12-23 | 220 | 380 | 455 | 410 | M24 | 12-28 | 250 | 420 |
| 350 | 505 | 460 | M20 | 16-23 | 230 | 400 | 520 | 470 | M24 | 16-28 | 260 | 440 |
| 400 | 565 | 515 | M24 | 16-28 | 230 | 400 | 580 | 525 | M27 | 16-31 | 270 | 460 |
| 450 | 615 | 565 | M24 | 20-28 | 250 | 420 | 640 | 585 | M27 | 20-31 | 270 | 460 |
| 500 | 670 | 620 | M24 | 20-28 | 260 | 450 | 715 | 650 | M30 | 20-34 | 280 | 490 |
| 600 | 780 | 725 | M27 | 20-31 | 260 | 460 | 840 | 770 | M33 | 20-37 | 300 | 520 |
| 700 | 895 | 840 | M27 | 24-31 | 260 | 460 | 910 | 840 | M33 | 24-37 | 300 | 520 |
| 800 | 1015 | 950 | M30 | 24-34 | 290 | 500 | 1025 | 950 | M36 | 24-40 | 320 | 550 |
| 900 | 1115 | 1050 | M30 | 28-34 | 290 | 500 | 1125 | 1050 | M36 | 28-40 | 320 | 560 |
| 1000 | 1230 | 1160 | M33 | 28-37 | 290 | 510 | 1255 | 1170 | M39 | 28-43 | 340 | 600 |
| 1200 | 1455 | 1380 | M36 | 32-40 | 320 | 570 | 1485 | 1390 | M45 | 32-49 | 360 | 650 |
Product application field
1. Mechanical field
2. Aviation and aerospace field
3. Automotive, electronics, medical equipment, water treatment equipment and other fields
4. Petroleum, chemical industry, electric power, metallurgy, water treatment and other fields
5. Environmental protection field
6. Other industries
Our service
1. Free warranty for 1 year, support third-party testing
2. Can be customized: appearance, label, manual, carton
3. Solutions and drawings can be provided for free
4. Free samples are available
5. Delivery inspection (pressure test, specification test, material, quantity, packaging)
6. On-time delivery
7. Support offline factory inspection
Recommendations for different types of products

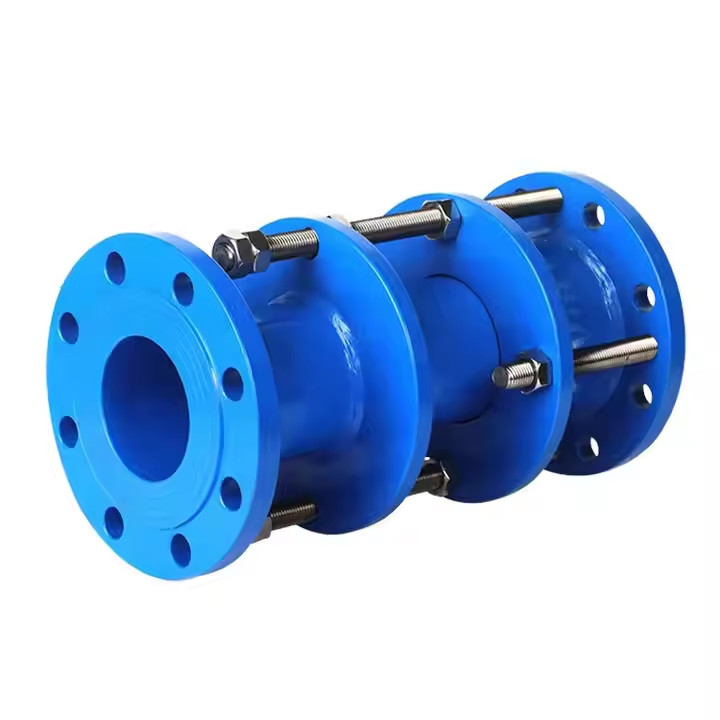

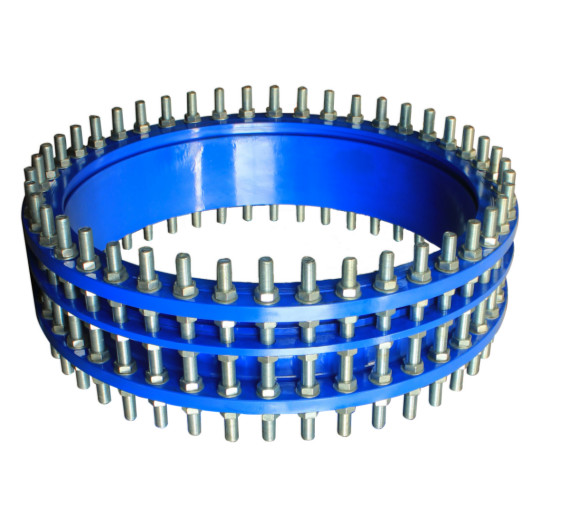

1.Dismantling joint
2.Double flange limit expansion joints
3.Single-flange limit expansion joints
4.Double flange power transmission joints
Product packaging

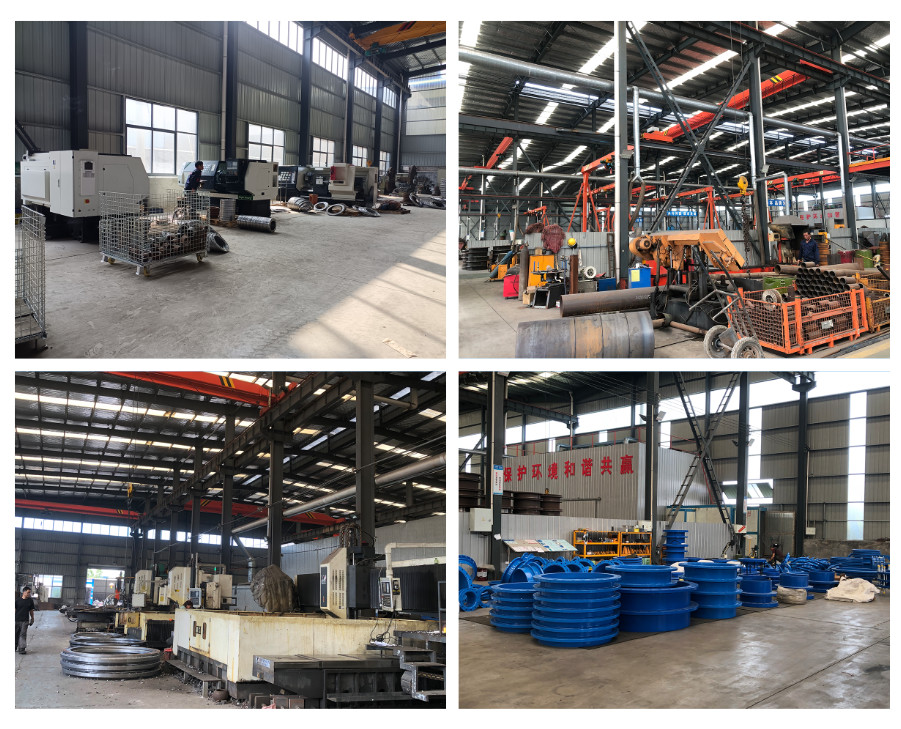

Workshop display
